Description Details

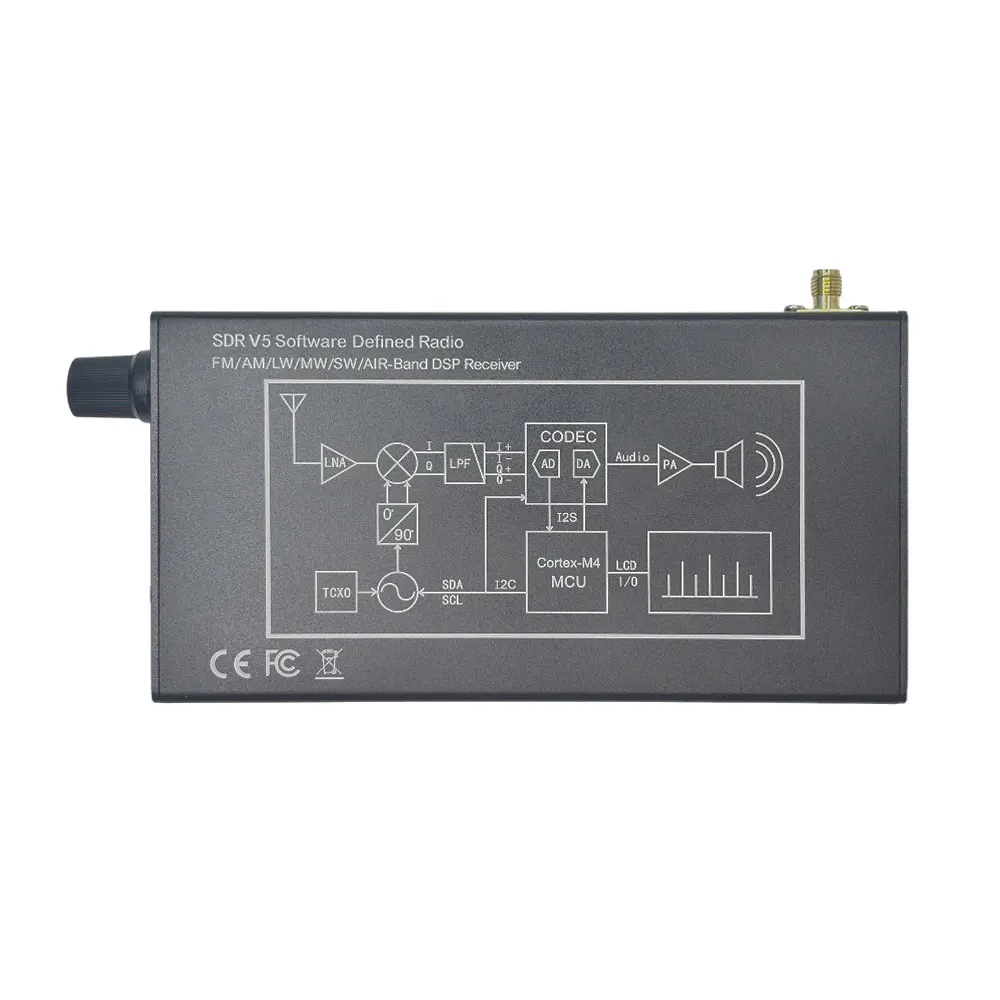

1. Advanced SDR technology: DSP digital demodulation receiver based on SDR software-defined radio architecture, with 192kHz wide spectrum and waterfall graph display capabilities, combined with 16-bit sampling, can realize CW (continuous wave), AM (amplitude modulation), SSB (single sideband), FM (frequency modulation, WFM (wideband frequency modulation) demodulation functions.

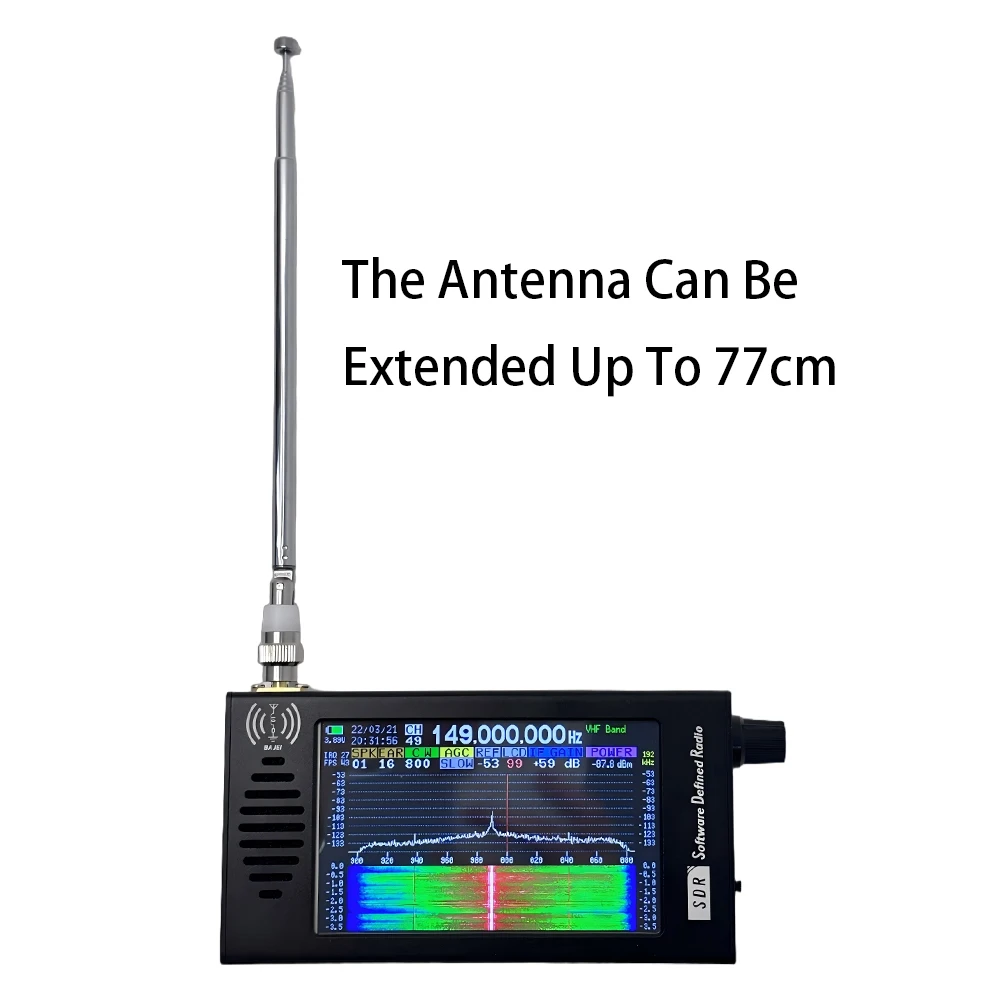

2. Excellent reception effect: Equipped with a powerful DSP chip and a retractable long antenna, the signal quality is good, and it can receive various channels without interference

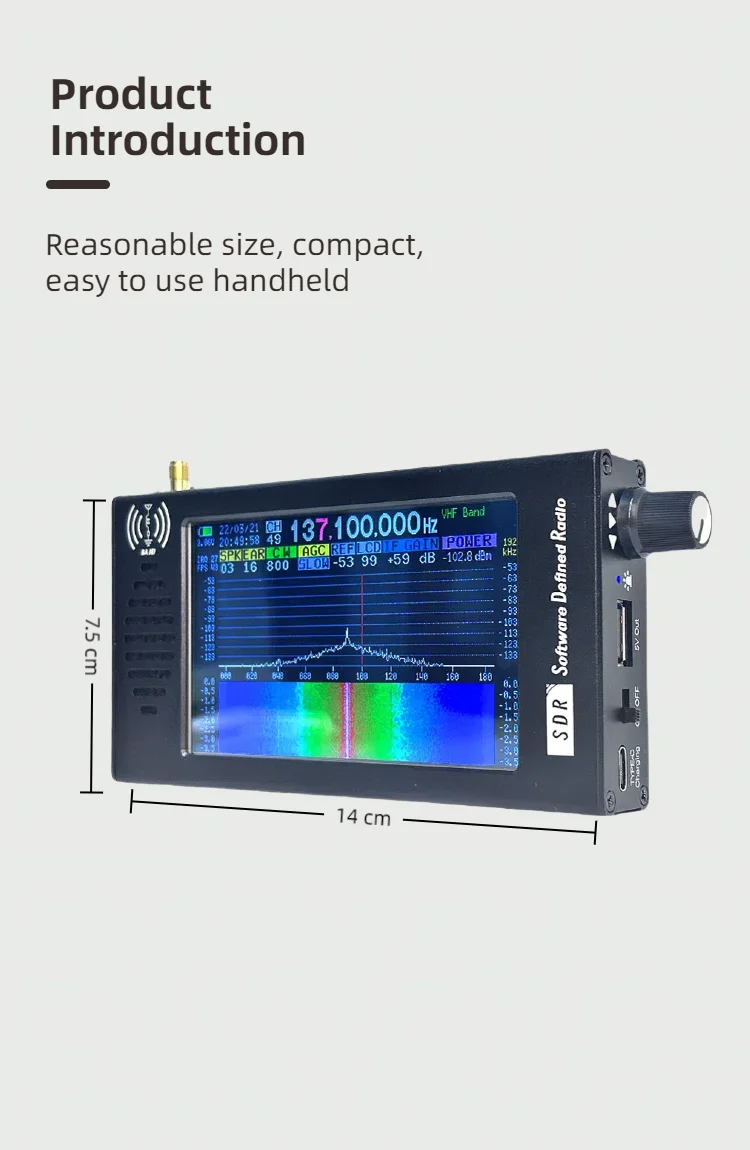

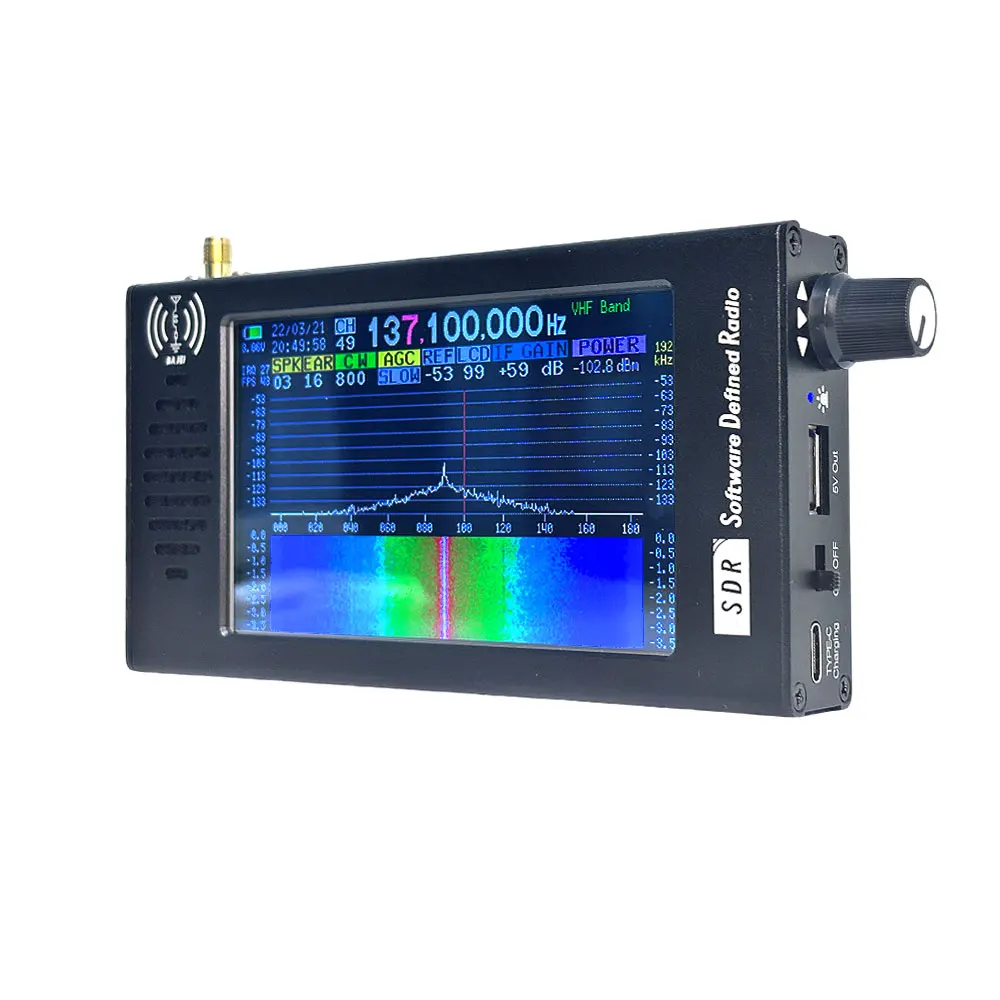

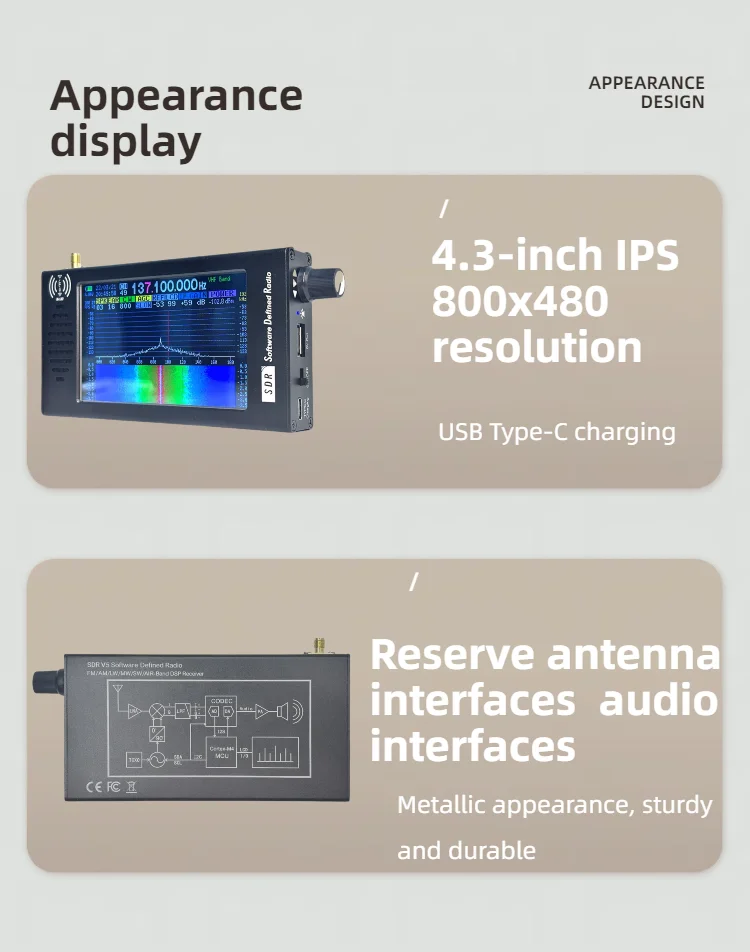

3. High-definition LCD display: It adopts an all-aluminum alloy CNC shell with a 4.3-inch 800x480 resolution high-brightness IPS LCD display for clear viewing of the spectrum and waterfall chart.

4.Compatible Headphones: Compact size (14X7.4X2.2cm) for easy portability. Supports regular 3.5mm headphones or CTIA (American standard) headphones.

5. High-capacity battery: built-in 3000mAh 3.7V battery, lasting about 10-12 hours (depending on volume and screen brightness settings)

6. Other features:
1.) 4.3 inch IPS capacitive screen for easy operation.
2.) 99 channels can be preset, and the station name, frequency and demodulation method can be set.
3.) Touch screen design, simple to use.

7. Specifications:
1.) Frequency range: 100KHz-149MHz1
2.) Screen: 4.3 inch IPS screen
3.) Demodulation mode: CW, AM, SSB, WFM, FM
4.) Stepping frequency: 1Hz/10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/1MHz/10MHz
5.) Spectral bandwidth: 192kHz, 128kHz, 64kHz, FFT real-time spectrum display
6.) Antenna interface: BNC male, impedance 50Q, maximum input power -20dBm6
7.) Reference crystal oscillator: TCX0 26MHz±0.5ppm
8.) Audio Interface: 3.5mm or CTIA Interface
9.) Speaker: 3W max, 4Q
10.) Battery: 3.7V, 5000mAh
11.) Product size: 140x74x22mm
12.) Product weight: 315g

8. Audio interface: 3.5mm or CTIA interface

9. Speaker: 3W max, 4Q

10. Battery: 3.7V, 5000mAh

11. Product size: 140x74x22mm 12. Product weight: 315g
